Introduction

We evaluate accelerators generated by Bambu on the standard benchmark suite CHStone proposed in:

Yuko Hara, Hiroyuki Tomiyama, Shinya Honda and Hiroaki Takada, “Proposal and Quantitative Analysis of the CHStone Benchmark Program Suite for Practical C-based High-level Synthesis”, Journal of Information Processing, Vol. 17, pp.242-254, (2009).

A comparison with a standard commercial HLS tool is provided when possible.

Setup

– Target hardware: AMD/Xilinx Virtex7 FPGA.
– Target frequency: 200 MHz.
– Source code for the benchmarks is available in examples/CHStone.

Summary

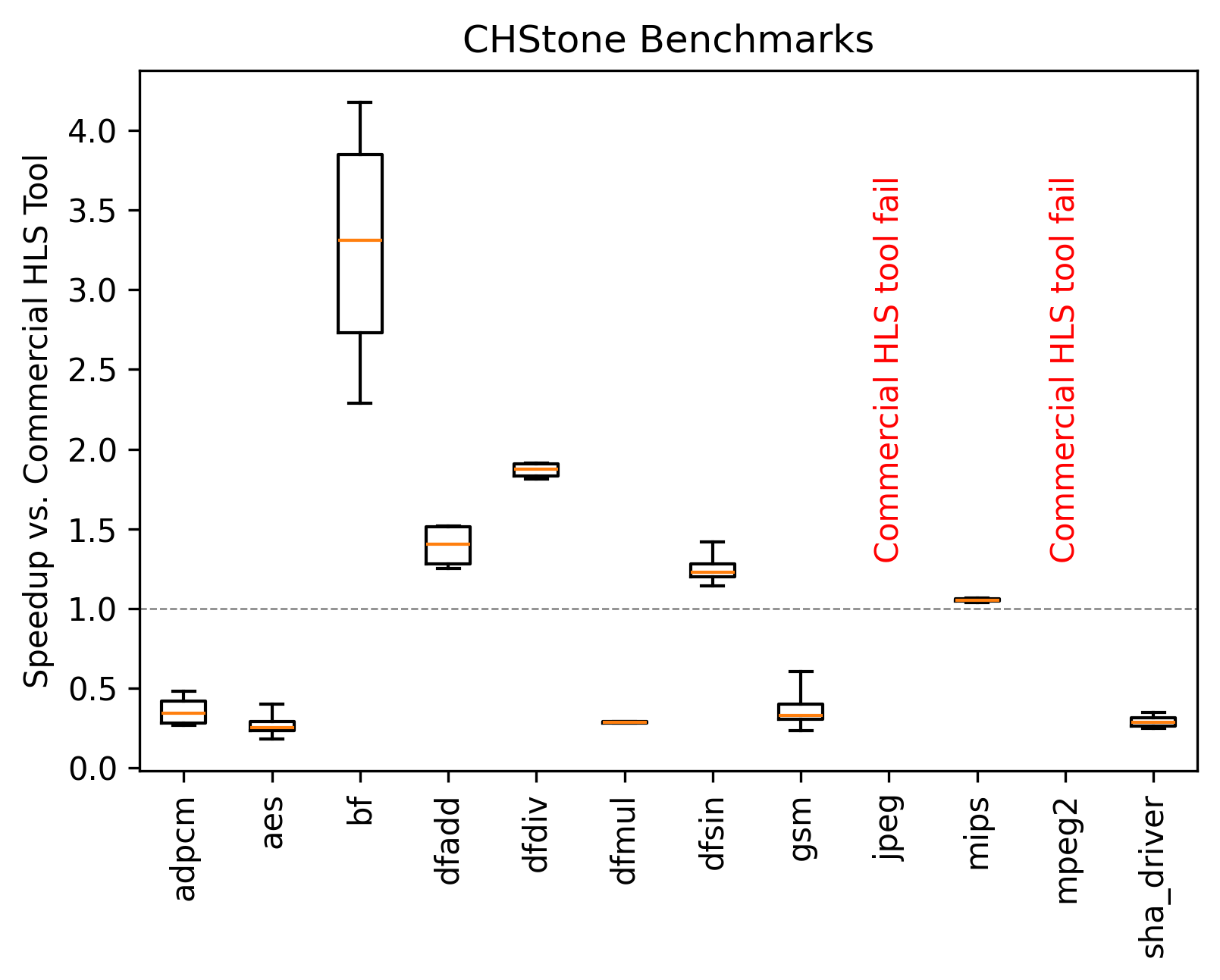

Speedup over commercial HLS tool for a set of different Bambu configurations across all benchmarks.

Latency is measured in ns (clock cycles * achieved period post-implementation). > 1 is better.

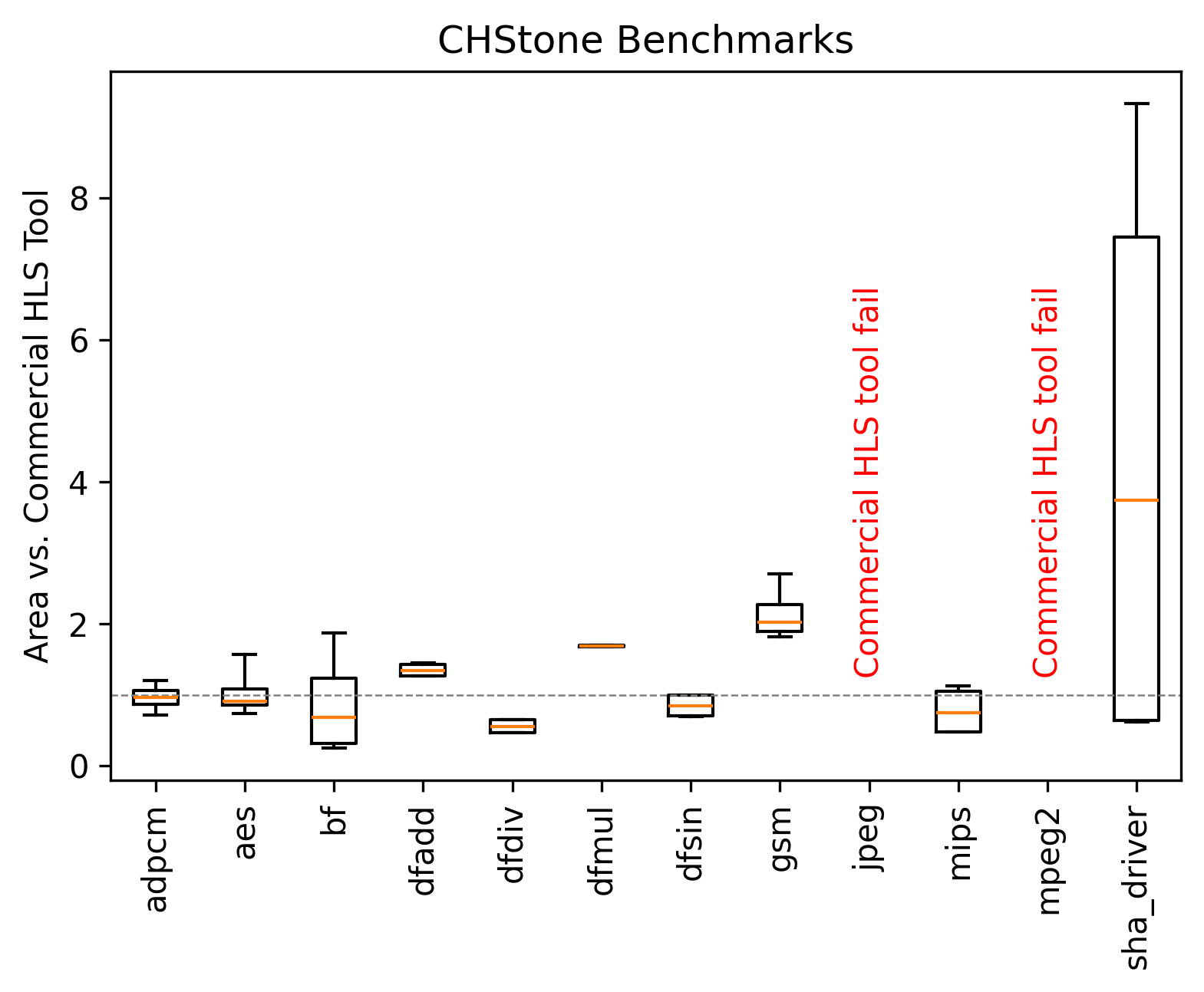

Area consumption over commercial HLS tool for a set of different Bambu configurations across all benchmarks.

Area is measured in Equivalent LUTs (BRAMs * 40 + DRAMs * 40 + DSPs * 40 + Registers * 0.5 + LUTs). < 1 is better.

Trade-offs

We highlight the effect of selecting different values for the --experimental-setup option, which steers Bambu towards different trade-offs between performance and area.

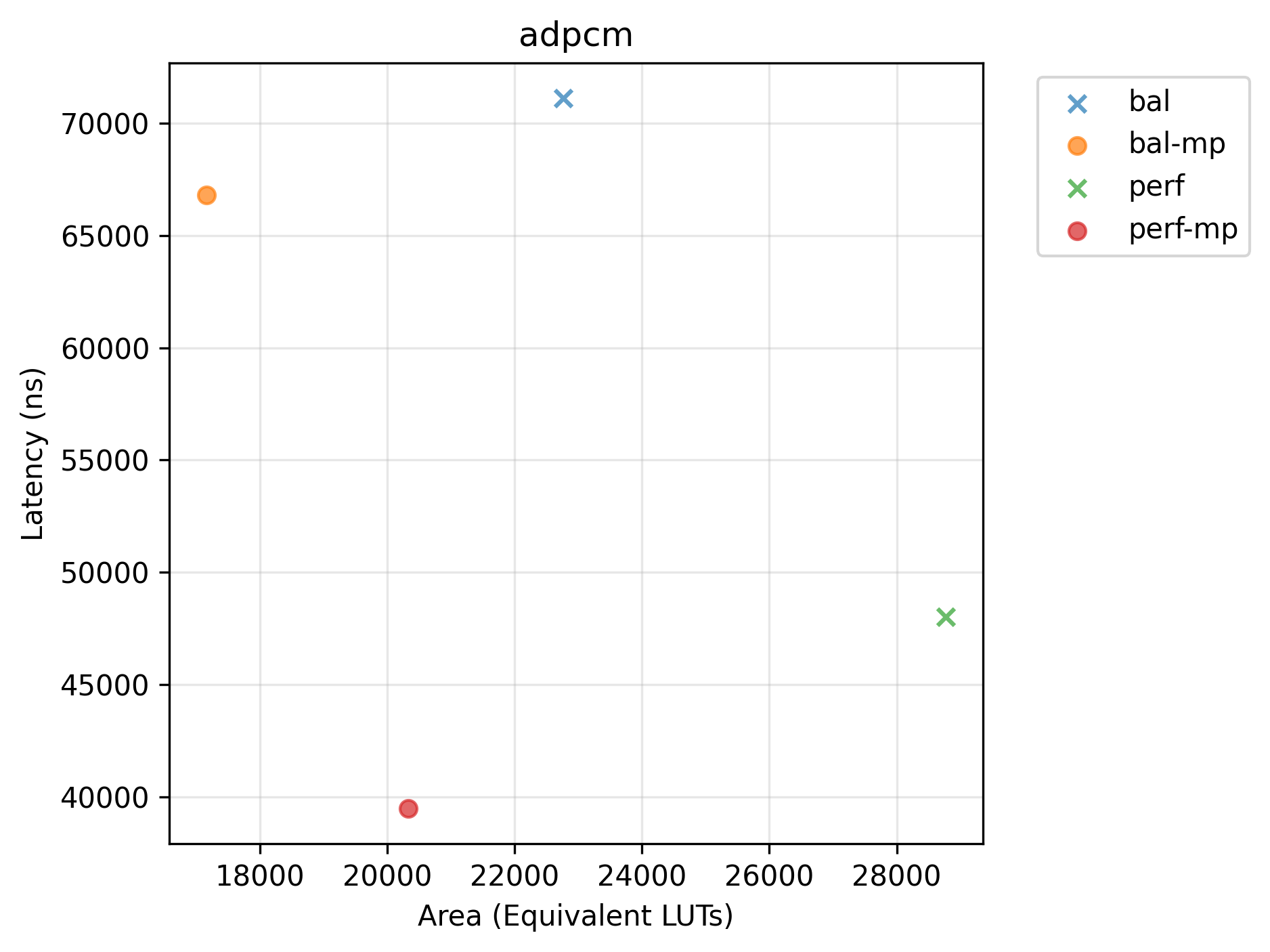

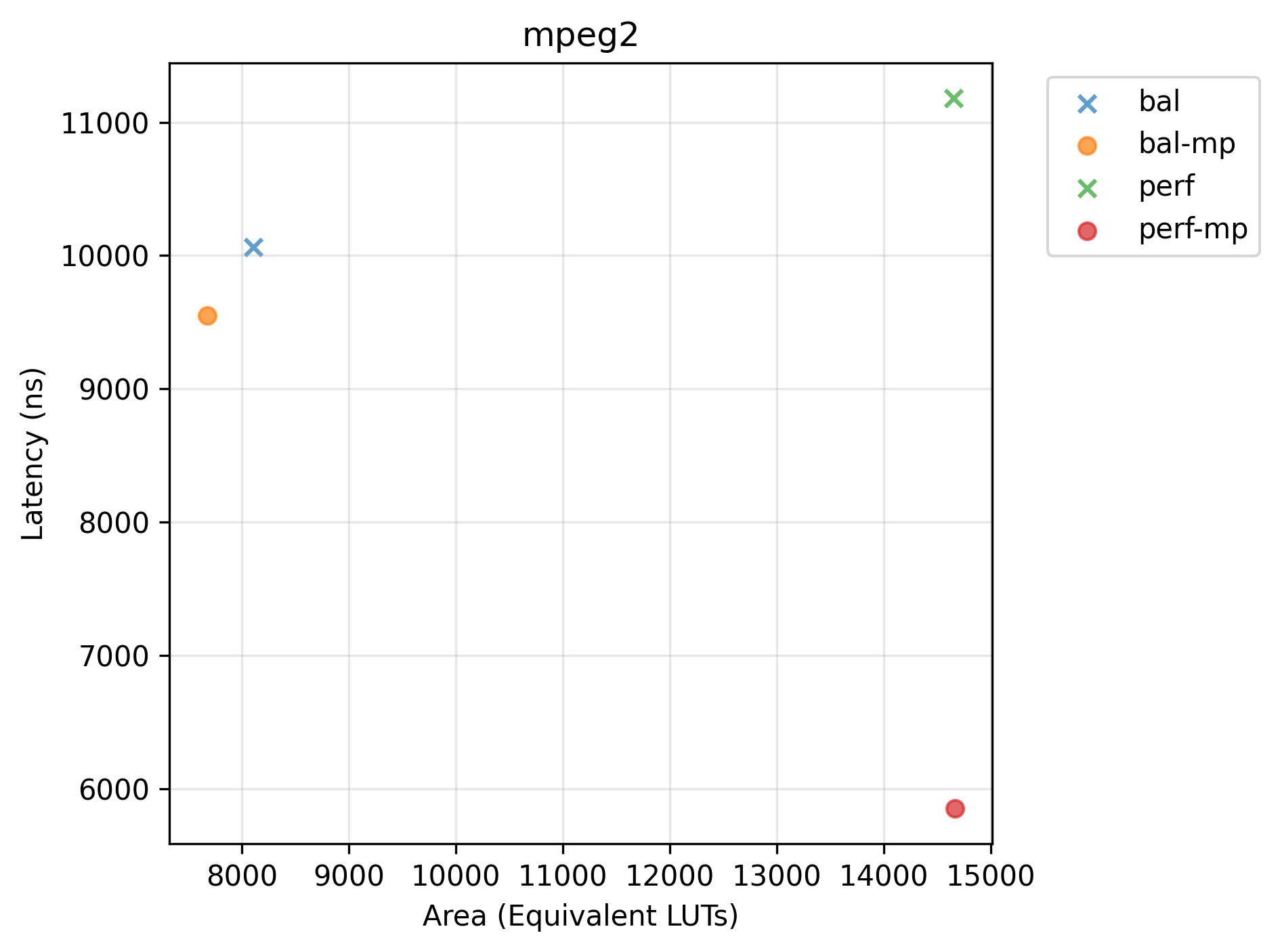

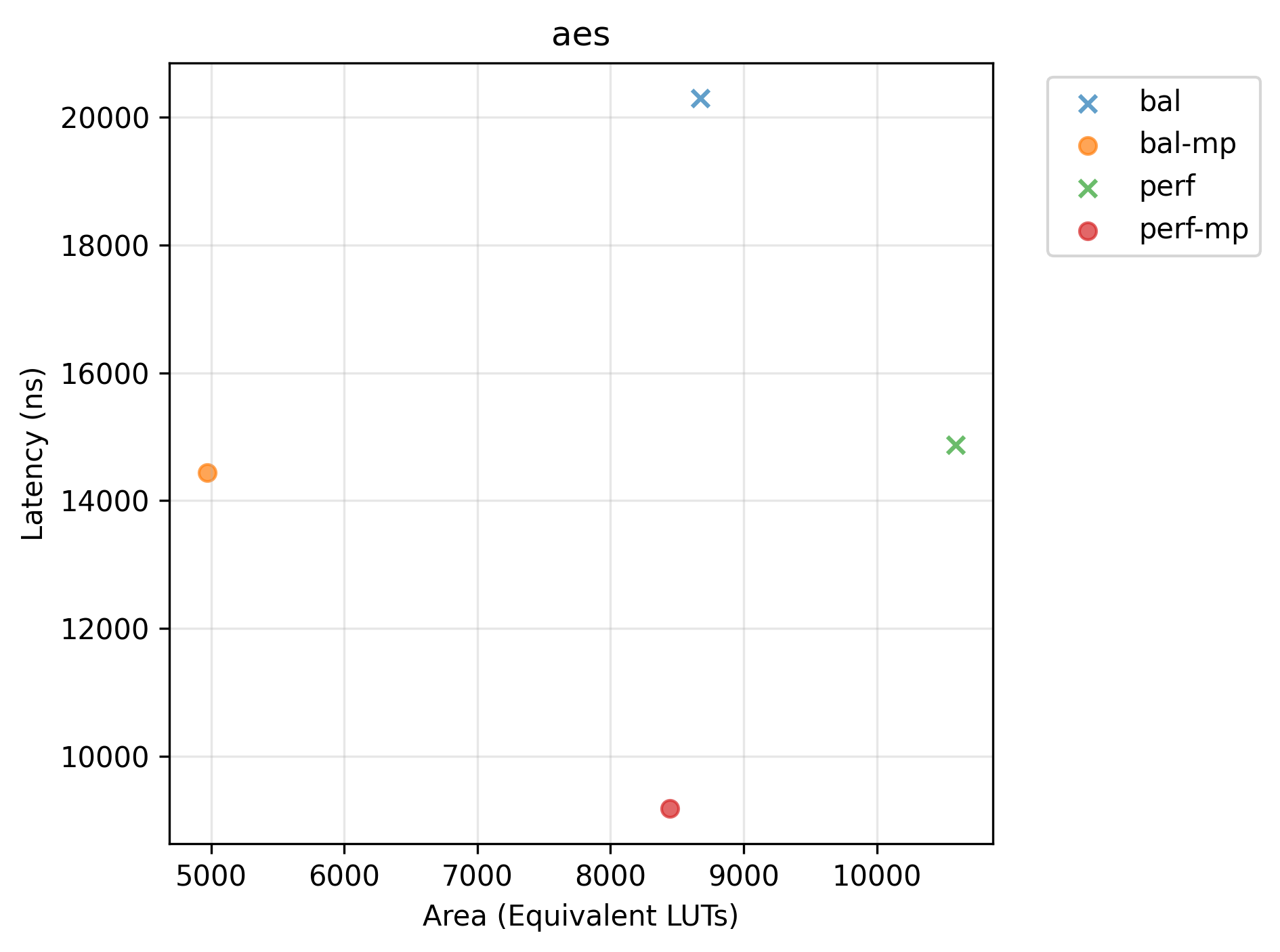

Pareto plots (Latency vs. Area) for selected benchmarks. Points marked with x are dominated.

Detailed Results

Post-p&r timing and area metrics for each benchmark and each selected configuration are available in a separate table.
